Aewa Products
Air Conditioners
split air conditioner 1 ton
عرض المواصفات
Split Type Air Conditioner
Indoor Model: TA-SG12WM
Outdoor Model: TA-SG12WM
Cooling Capacity: 12,000 BTU/h
Operating Conditions (T1):
Current: 4.80A
Power Input: 1,090W
Energy Efficiency Ratio (EER): 11.00 BTU/h/W
Heating Capacity: 3,517W
Operating Conditions (H1):
Current: 5.00A
Power Input: 1,115W
Coefficient of Performance (COP): 3.15 W/W
Cooling Capacity under T3 Conditions: 10,200 BTU/h
Operating Conditions (T3):
Current: 5.80A
Power Input: 1,310W
Energy Efficiency Ratio (EER): 7.79 BTU/h/W
Operating Pressure:
Discharge Pressure: 4.8 MPa
Suction Pressure: 1.5 MPa
Refrigerant: R410A / 0.85 kg
Power Supply: 220-240V ~ 50Hz, Single Phase
Rated Current: 10.5A
Rated Power Input: 1,900W
Outdoor Unit Protection Rating: IPX4
Country of Manufacture: China
Brand: Aewa
Outdoor Unit Warning:
Ensure that all air inside the indoor unit and piping is evacuated using a vacuum pump.
The additional refrigerant charge depends on the pipe size and length; refer to the installation manual for details.
Improper installation due to failure to follow instructions may cause serious issues with the unit.

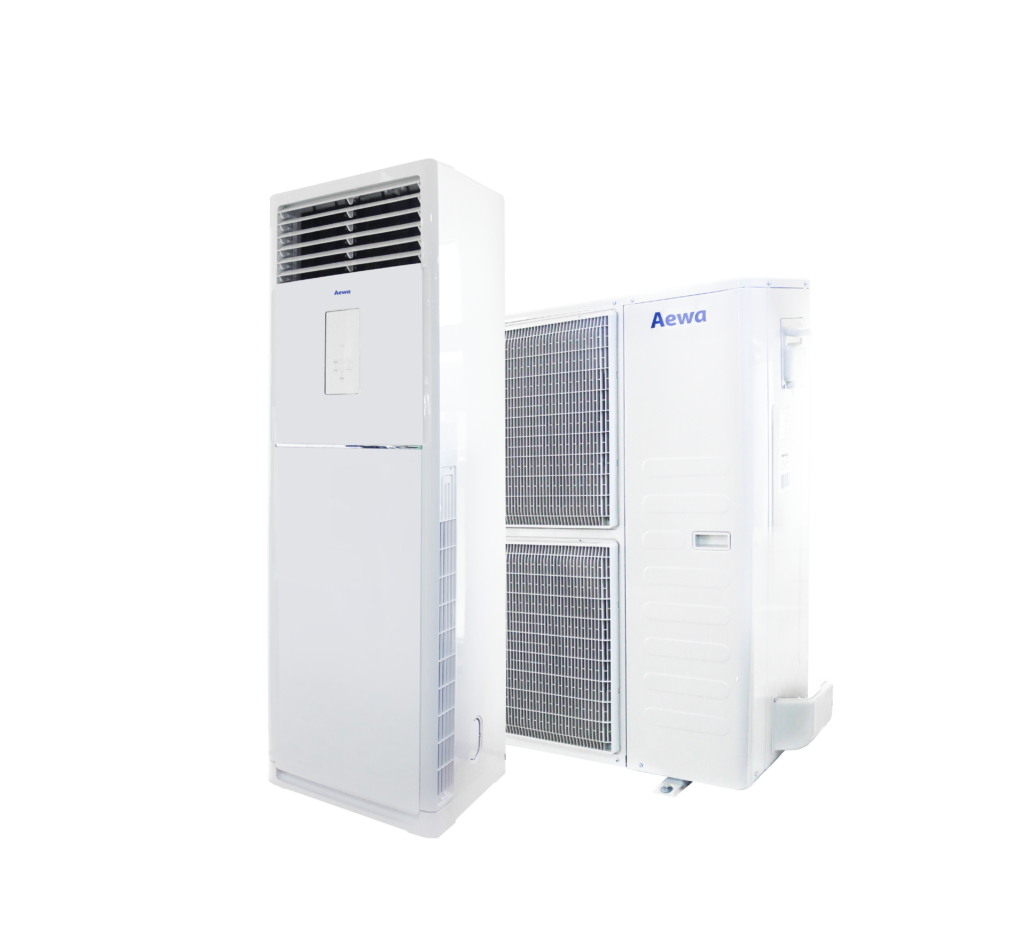

vertical air conditioner 3 ton
View specifications
MODEL / TA-SG 36FS
COOLING CAPACITY / 36000 Btu/h
HEATING CAPACITY / 38000 But/h
MAXIMUM ALLOWABLE / 5.2MPa
PRESSURE
REFRIGERANT / R410A/2.45kg
EXCESSIVE OPERATING
PRESSURE / DISCHARGE – 4.8 Mpa
SUCTION – 1.5 Mpa
INDOOR / 60.6kg
WEIGHT
OUTDOOR / 81.3kg
POWER SOURCE / 220-240V – 50Hz , 1Ph
STANDARD COOLING /CURRENT/14.2A
RATING INPUT / 3200W
CONDITIONS HEATING / CURRENT/13.5A
INPUT / 3050W
MAX CURRENT / 26.5A
MAX INPUT / 48000W
OUTDOOR UNIT
RESISTANCE CLASS / IP 24
MADE IN CHINA

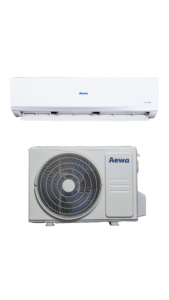

inverter air conditioner 1 ton
View specifications
Split Type Air Conditioner
Indoor Model: TA-SG12WM-INV
Outdoor Model: TA-SG12WM-INV
Cooling Capacity: 12090 BTU/h (4100-14500)
Current (Amp): 3.91 (2-5.2)
T1 Conditions
Input (W): 875 (296-1185)
Energy Efficiency Ratio (BTU/h)/W: 13.81
Heating Capacity (W): 3977
Current (Amp): 4.32 (1.5-5.3)
H1 Conditions
Input (W): 968 (335-1180)
Coefficient of Performance (W/W): 4.11
Cooling Capacity (BTU/h): 10490
T3 Conditions
Current (Amp): 4.79
Input (W): 1085
Energy Efficiency Ratio (BTU/h)/W: 9.67
Maximum Allowable Pressure: 4.8 MPa
Overpressure Operation
Discharge: 4.8 MPa
Suction: 1.5 MPa
Refrigerant: R410A/1.1 kg
Power Supply: 220-240V ~ 50Hz, 1 Phase
Rated Current: 10.5 Amp
Rated Input: 2300 W
Outdoor Unit Protection Class: IPX4
Made in China
Brand: Aewa
Outdoor Unit Warning
Ensure air evacuation inside the indoor unit and pipes using a vacuum pump.
Make sure that the additional refrigerant charge depends on the pipe size and length; please refer to the installation instructions for details.
Incorrect installation due to disregarding instructions will cause a serious issue for the machine.
split air conditioner 1.5 ton
View specifications
Split-Type Air Conditioner
Indoor Model: TA-SG18WM
Outdoor Model: TA-SG18WM
Specifications:
Cooling Capacity (T1): 18,000 BTU/h
Current (T1): 7.20 Amps
Input Power (T1): 1,620 Watts
Energy Efficiency Ratio (EER) (T1): 11.11
Heating Capacity: 5,715 Watts
Current (H1): 7.75 Amps
Input Power (H1): 1,730 Watts
Coefficient of Performance (COP) (H1): 3.30
Cooling Capacity (T3): 16,000 BTU/h
Current (T3): 8.75 Amps
Input Power (T3): 1,970 Watts
Energy Efficiency Ratio (EER) (T3): 8.12
Operating Pressure (Discharge): 4.8 MPa
Operating Pressure (Suction): 1.5 MPa
Refrigerant Type: R410A / 1.4 kg
Power Supply: 220-240V ~ 50Hz, 1 Phase
Rated Current: 16 Amps
Rated Input Power: 3,000 Watts
Outdoor Unit Protection Rating: IPX4
Country of Origin: China
Brand: Aewa
Outdoor Unit Warning:
Ensure air is fully evacuated from the indoor unit and pipes using a vacuum pump.
The additional refrigerant charge depends on the pipe size and length—refer to the installation manual for details.
Incorrect installation due to neglecting the instructions may cause serious damage to the unit.
inverter air conditioner 1.5 ton
View specifications
Brand: Aewa
Indoor Model: TA-SG18WM-INV
Outdoor Model: TA-SG18WM-INV
Cooling Capacity: 18000 BTU/h
Cooling Range: 3500 – 18800 BTU/h
Power Source: 220-240V~50Hz, 1Ph
Electrical Specifications:
Current: 6.1 Amps (Range: 3.3 – 6.81 A)
Rated Input: 3000W
Rated Current: 13.5 Amps
Operating Conditions:
T1 Condition (Cooling):
Input: 1400W (Range: 533 – 1543W)
Energy Efficiency Ratio (EER): 12.85 (BTU/h)/W
H1 Condition (Heating):
Heating Capacity: 5568W
Current: 6.1A (Range: 4 – 6.42A)
Input: 1400W (Range: 650 – 1451W)
Coefficient of Performance (COP): 4.00 W/W
T3 Condition (Cooling):
Cooling Capacity: 15400 BTU/h
Current: 7.85A
Input: 1770W
Energy Efficiency Ratio (EER): 8.70 (BTU/h)/W
Additional Features:
Refrigerant: R410A / 1.45 kg
Maximum Allowable Pressure: 5.5 MPa
Excessive Operating Pressure: 4.8 MPa (Discharge) / 1.5 MPa (Suction)
Outdoor Unit Resistance Class: IPX4
Made in: China

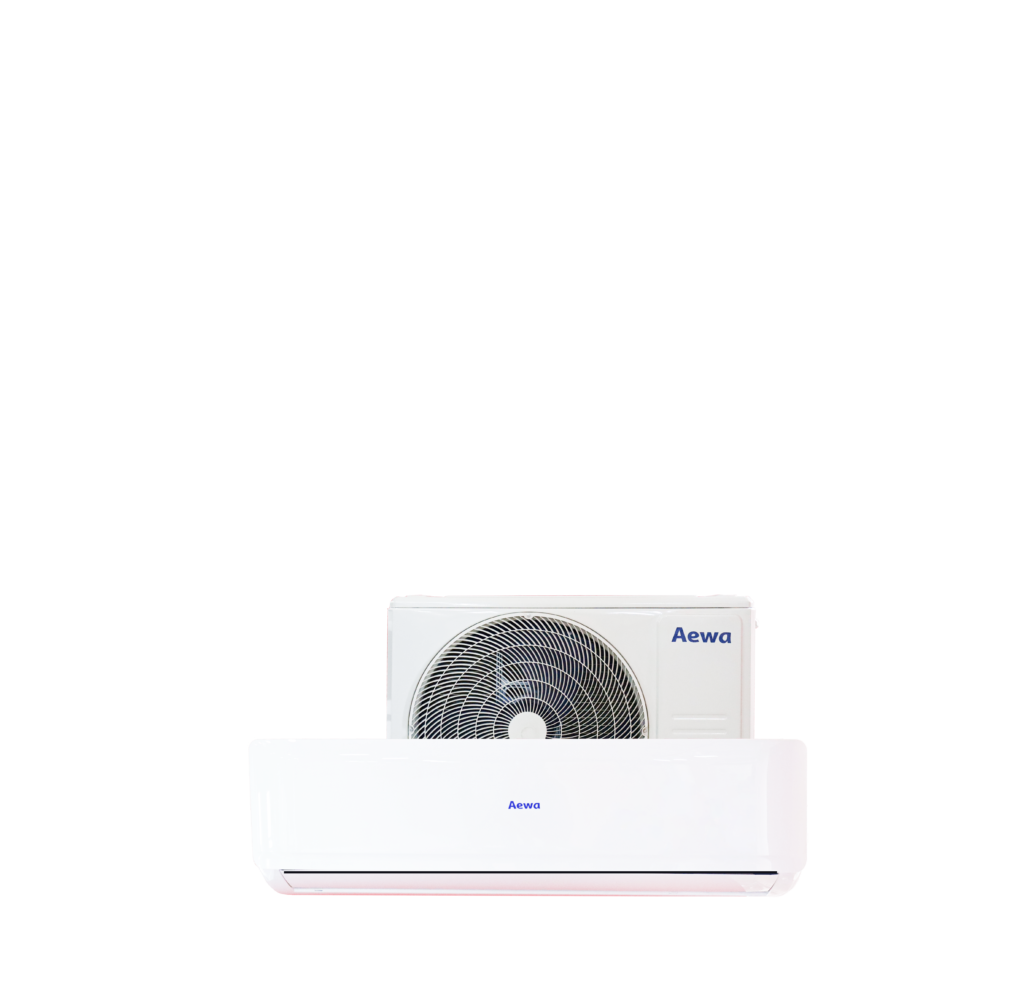

split air conditioner 2 ton
View specifications
MODEL / TA-SG 24WM
COOLING CAPACITY / 23800 Btu/h
HEATING CAPACITY / 26000 But/h
REFRIGERANT / R22/1.7kg
EXCESSIVE OPERATING
PRESSURE / DISCHARGE – 3.0 Mpa
SUCTION – 1.0 Mpa
INDOOR / 14.5kg
WEIGHT
OUTDOOR / 52.0kg
POWER SOURCE / 220-240V – 50Hz , 1Ph
STANDARD COOLING /CURRENT/12.5A
RATING INPUT / 2780W
CONDITIONS HEATING / CURRENT/11.5A
INPUT / 2520W
MAX CURRENT / 22A
MAX INPUT / 4300W
OUTDOOR UNIT
RESISTANCE CLASS / IP 24
MADE IN CHINA
Air Coolers

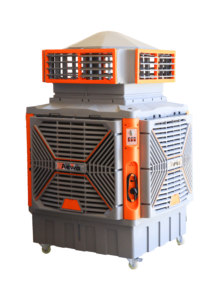

Big size Air Cooler
View specifications
Model: AE-4S23000
Voltage: 220-240V ~ 50Hz
Power: 2200W
Maximum airflow: 25,000 m³/h
Water consumption: 5-10 liters/h
Effective area: 150-220 square meters
Temperature: 45
Country of manufacture: China

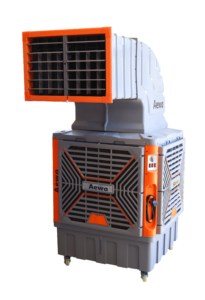

Big size Air Cooler
View specifications
Model: AE-4S18000
Voltage: 220-240V ~ 50Hz
Power: 1500W
Maximum airflow: 22,000 m³/h
Water consumption: 5-10 liters/h
Effective area: 100-150 square meters
Temperature: 45
Country of manufacture: China

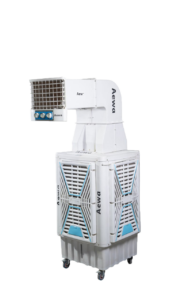

Meduim size Air Cooler
View specifications
Model: AE-4S9000
Voltage: 220-240V ~ 50Hz
Power: 600W
Maximum airflow: 9000 m³/h
Water consumption: 6-8 liters/h
Effective area: 40-50 square meters
Temperature: 45
Country of manufacture: China

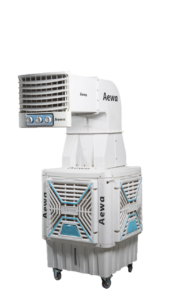

Small size Air Cooler
View specifications
Model: AE-4S7500
Voltage: 220-240V ~ 50Hz
Power: 600W
Maximum airflow: 7500 m³/h
Water consumption: 2-3 liters/h
Effective area: 40-50 square meters
Temperature: 45
Country of manufacture: China
Water Dispensers

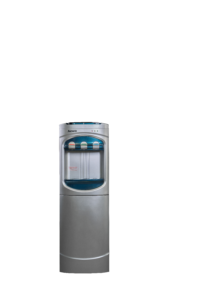

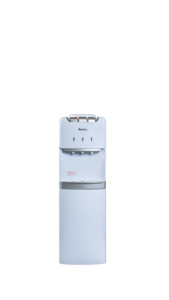

Water Dispensers Model 5X48R
Colors:
View specifications
Specifications
* Quickly and efficiently prepares for various games according to needs
* Live broadcast for filtering drinks and food
* High quality, durable, and efficient operation
* Includes a dedicated water storage port
* Three-year warranty with the possibility of replacement
* Modern cooler design, designed to fit all decors with innovative designs
* Low fuel consumption, making it an energy-efficient and environmentally friendly option

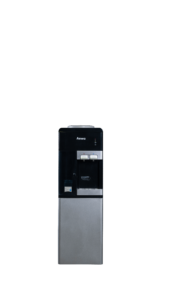

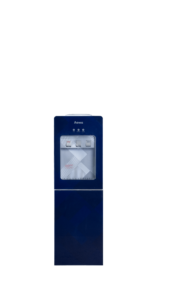

Water Dispensers Model 5X94R
Colors:
View specifications
Specifications
* Quickly and efficiently prepares for various games according to needs
* Live broadcast for filtering drinks and food
* High quality, durable, and efficient operation
* Includes a dedicated water storage port
* Three-year warranty with the possibility of replacement
* Modern cooler design, designed to fit all decors with innovative designs
* Low fuel consumption, making it an energy-efficient and environmentally friendly option

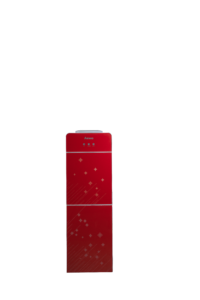

Water Dispensers Model 5X99R
Colors:
View specifications
Specifications
* Quickly and efficiently prepares for various games according to needs
* Live broadcast for filtering drinks and food
* High quality, durable, and efficient operation
* Includes a dedicated water storage port
* Three-year warranty with the possibility of replacement
* Modern cooler design, designed to fit all decors with innovative designs
* Low fuel consumption, making it an energy-efficient and environmentally friendly option
Water Dispensers Model 5X76R
Colors:
View specifications
Specifications
* Quickly and efficiently prepares for various games according to needs
* Live broadcast for filtering drinks and food
* High quality, durable, and efficient operation
* Includes a dedicated water storage port
* Three-year warranty with the possibility of replacement
* Modern cooler design, designed to fit all decors with innovative designs
* Low fuel consumption, making it an energy-efficient and environmentally friendly option
Water Dispensers Model 5X80R
Colors:
View specifications
Specifications
* Quickly and efficiently prepares for various games according to needs
* Live broadcast for filtering drinks and food
* High quality, durable, and efficient operation
* Includes a dedicated water storage port
* Three-year warranty with the possibility of replacement
* Modern cooler design, designed to fit all decors with innovative designs
* Low fuel consumption, making it an energy-efficient and environmentally friendly option
